High-voltage X‑ray systems are critical tools across industries ranging from security and industrial inspection to medical imaging. The heart of these systems is the x ray machine power supply, which provides the energy needed to generate X-rays safely and reliably. Selecting the right power supply is crucial because it directly impacts the performance, efficiency, and lifespan of your X-ray equipment. With a variety of options available, knowing what features to prioritize ensures your investment delivers the precision and reliability your operations demand.
Understanding High-Voltage X‑Ray Power Supplies
A high-voltage X‑ray power supply converts standard electrical input into a stable, precise output for the X-ray tube. Consistent voltage is crucial, as fluctuations can affect image quality, measurement accuracy, and safety. Modern systems use advanced electronics to improve performance while minimizing size and weight. Needs vary by application: industrial inspection requires higher voltage and current for dense materials, while medical and laboratory equipment focuses on precision and safety. Assessing the specific application and operational requirements ensures selection of a reliable, efficient power supply for optimal X-ray system performance.
Key Features to Look For
1. Voltage Range and Stability
The voltage range of the x ray machine power supply determines the energy of the X-rays produced. For industrial or cargo inspection, higher voltages are often necessary to penetrate thick metals or dense objects. Stability is equally important; any fluctuation can produce inconsistent results, affecting both safety and operational efficiency. Look for power supplies that provide consistent voltage output with minimal ripple and fast response times.
2. Current Capacity and Control
X-ray output depends not only on voltage but also on current. The power supply must provide sufficient current to maintain the desired X-ray intensity without overloading the system. Adjustable current control allows operators to fine-tune exposure levels, optimizing image quality while reducing wear on the X-ray tube. High voltage x ray generators with precise current regulation enhance both reliability and performance.
3. High-Frequency Operation
Traditional X-ray power supplies use lower frequency AC, which can be bulky and less efficient. Modern high frequency generator x ray designs offer smaller, lighter units with faster response times and improved energy efficiency. High-frequency operation also reduces electrical noise, which contributes to sharper images and more accurate readings. For compact or portable X-ray systems, high-frequency power supplies are often the preferred choice.
4. Safety Features
Working with high-voltage equipment inherently carries risks. A reliable x ray machine power supply incorporates multiple safety features, including over-voltage protection, over-current protection, and thermal monitoring. These safeguards protect both the operator and the expensive X-ray tube, preventing accidental damage and downtime. Look for units that meet international safety standards and provide clear diagnostics in case of faults.
5. Control and Monitoring Capabilities
Advanced X-ray power supplies offer digital control and monitoring options. Features such as remote voltage adjustment, automated calibration, and real-time performance feedback make it easier to operate the system efficiently. Some units include interfaces compatible with imaging software or industrial control systems, allowing seamless integration into larger workflows. The ability to monitor temperature, voltage, and current trends helps in predictive maintenance, reducing unplanned interruptions.
6. Compact Design and Cooling
High-voltage X-ray power supplies generate significant heat during operation. Effective thermal management ensures reliability and prolongs the life of the equipment. Modern high voltage x ray generators often use compact designs with integrated cooling solutions, such as forced-air or liquid cooling. Smaller footprints are advantageous for systems with space constraints, while efficient cooling prevents overheating and maintains stable performance during long operation cycles.
7. Reliability and Maintenance
Maintenance considerations should guide your choice. Look for power supplies designed for long-term use with durable components and easy access for service. Modular designs allow quick replacement of faulty sections without dismantling the entire system. Additionally, choosing a supplier with a strong support network ensures timely assistance for maintenance, repair, or spare parts procurement.
8. Compatibility with X-ray Tubes
Not all power supplies are compatible with every X-ray tube. Verify that the voltage, current, and waveform specifications match the tube’s requirements. Proper matching maximizes X-ray output, minimizes tube wear, and ensures safety. Modern high frequency generator x ray systems often support a wide range of tubes, offering flexibility for upgrades or changes in application.
9. Regulatory Compliance
X-ray systems are heavily regulated due to radiation safety concerns. A compliant x ray machine power supply ensures your system adheres to local and international standards. Compliance includes shielding requirements, emission limits, and documentation for safe operation. Choosing a certified power supply simplifies regulatory approvals and helps maintain safe working conditions.
Benefits of Investing in the Right Power Supply
Selecting the proper high voltage x ray generators or high frequency generator x ray provides multiple benefits:
- Enhanced imaging precision
- Consistent performance for industrial and medical applications
- Reduced operational downtime due to improved reliability
- Safer operation with integrated protective features
- Energy efficiency and reduced operating costs
A high-quality power supply transforms your X-ray system into a dependable tool that delivers accurate results consistently, whether in an industrial inspection plant, a medical lab, or security screening.
Key Considerations Before Purchase
Before purchasing, consider the following:
- Application Needs: Define whether you need high penetration for industrial use or precision for medical imaging.
- Environmental Conditions: Check if the unit can withstand ambient temperature, humidity, and vibration.
- Support and Service: Ensure local or remote support is available for installation, calibration, and troubleshooting.
- Budget vs Performance: Balance initial cost with operational efficiency, maintenance, and long-term reliability..
Taking the time to assess these factors ensures that the selected x ray machine power supply delivers maximum value and minimizes operational risks.
Summary
A high-voltage X-ray power supply is the backbone of any X-ray system. Features like voltage stability, current control, high-frequency operation, safety mechanisms, and monitoring capabilities are essential for reliable performance. Compact design, thermal management, compatibility, compliance, and integration flexibility further enhance system efficiency. Choosing the right unit ensures long-term performance, safety, and productivity across applications.

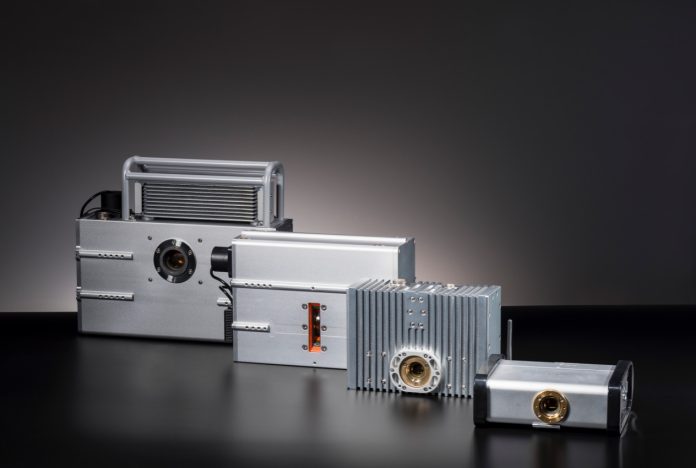

VJ X-Ray offers advanced high-voltage X-ray power supplies that combine precision engineering, reliable performance, and robust support. Their solutions integrate modern high frequency generator x ray technology to deliver consistent results across medical, industrial, and security applications. With decades of experience, they provide dependable equipment tailored to diverse operational needs.
